Audio-Technica AT-LP7X Turntable

Description

AT-LP7X

Fully Manual Belt-Drive Turntable



Overview:

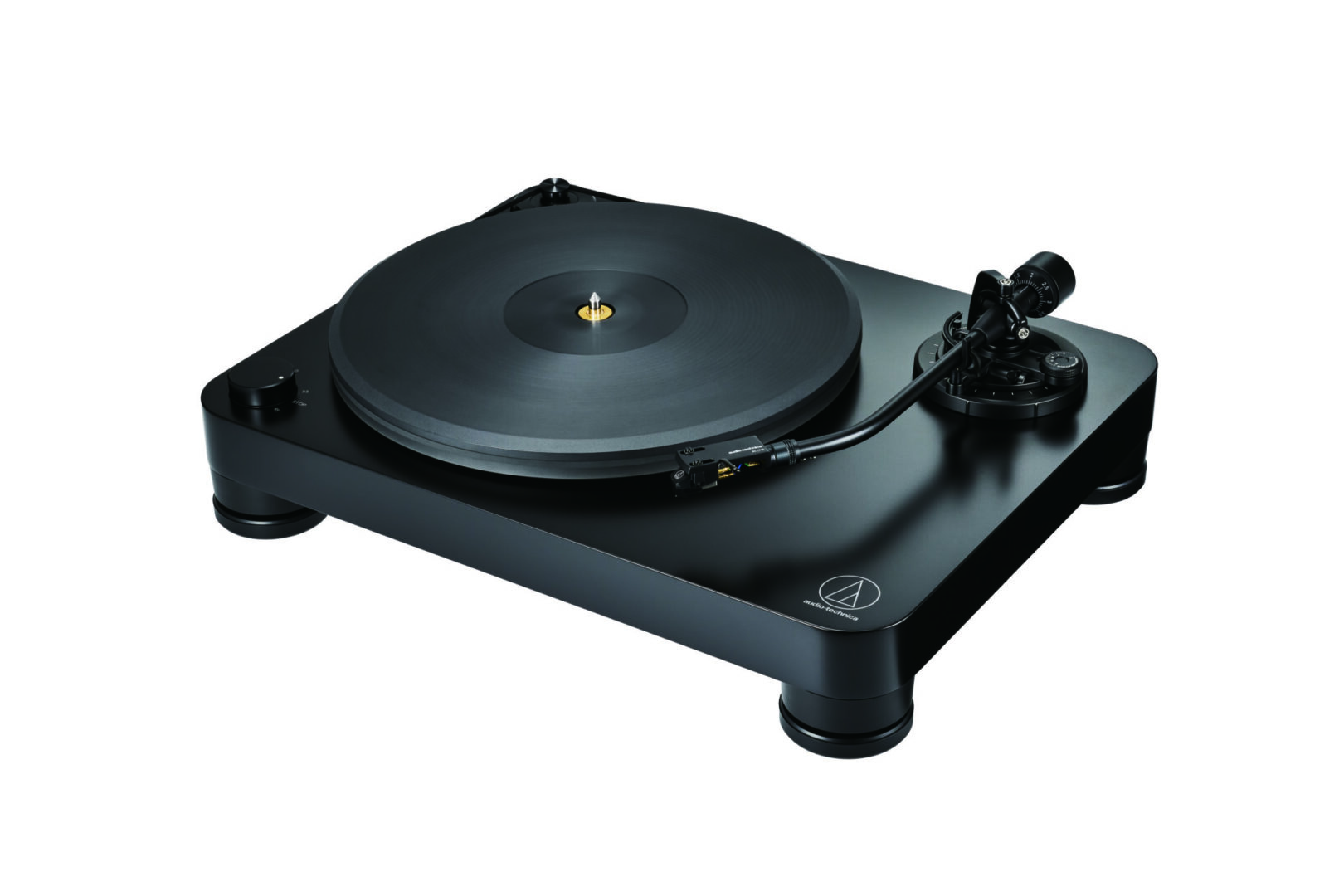

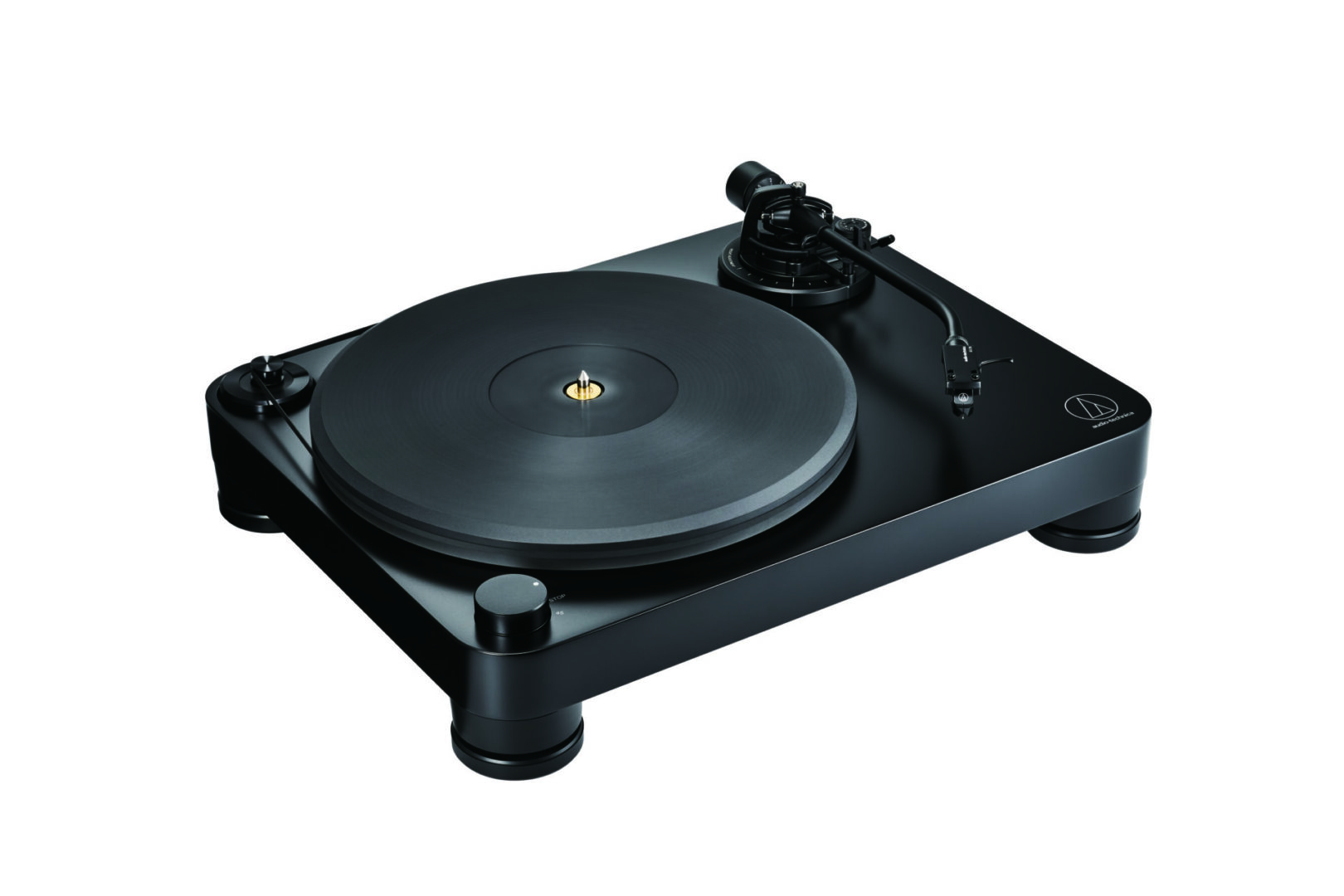

Audio-Technica updates its line of fully manual belt-drive turntables with the AT-LP7X, featuring a dense MDF plinth and acrylic platter to minimize resonance and vibrations for cleaner sound. Its sleek matte black finish gives it a minimalistic, modern appeal.

The turntable’s J-shaped aluminum tonearm, inspired by classic A-T models of the 1960s and ’70s features a dual-axis gimbal with precision ball bearings for low-friction tracking. It is equipped with the AT-LT10 headshell and AT-VM95E BK (black) cartridge with 0.3 x 0.7 mil elliptical stylus, providing excellent channel separation and low distortion for outstanding tonal quality. For easy customization, the stylus can be replaced or interchanged with other styli in the VM95 line.

The tonearm’s VTA (vertical tracking angle) adjustment and 16 g subcounterweight also enable the use of a broad range of other cartridges and headshells. (A 32 g subcounterweight, available separately, enables the use of even heavier cartridge/headshell combinations.) For further customization and convenience, the AT-LP7X features a built-in switchable phono pre-amplifier with selectable modes for MM (moving magnet) or MC (moving coil) cartridges

The AT-LP7X plays 33-1/3 and 45 RPM records. Its 20 mm acrylic platter is driven by an optical sensor-monitored motor that ensures a continuously accurate platter rotation speed. The motor is mounted on vibration-dampening rubber bushings designed to decouple the motor from the plinth, minimizing the transmission of mechanical noise and oscillations. An external switching power supply isolates the AC to DC conversion to prevent it from adding any electrical interference. The spring-based isolation feet are height-adjustable and offer excellent protection against unwanted noise and vibration.

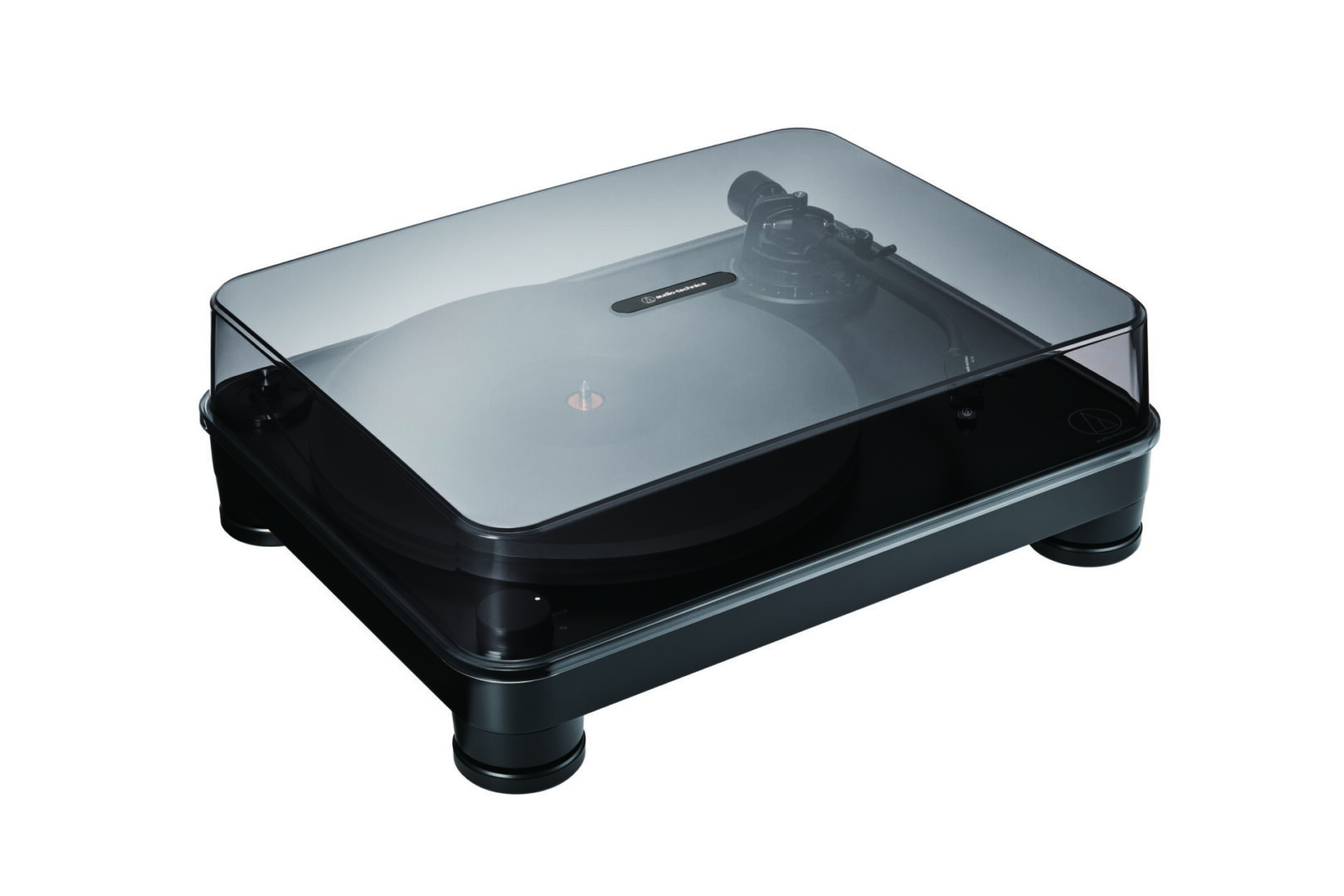

The turntable comes with a detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter, and removable hinged dust cover.

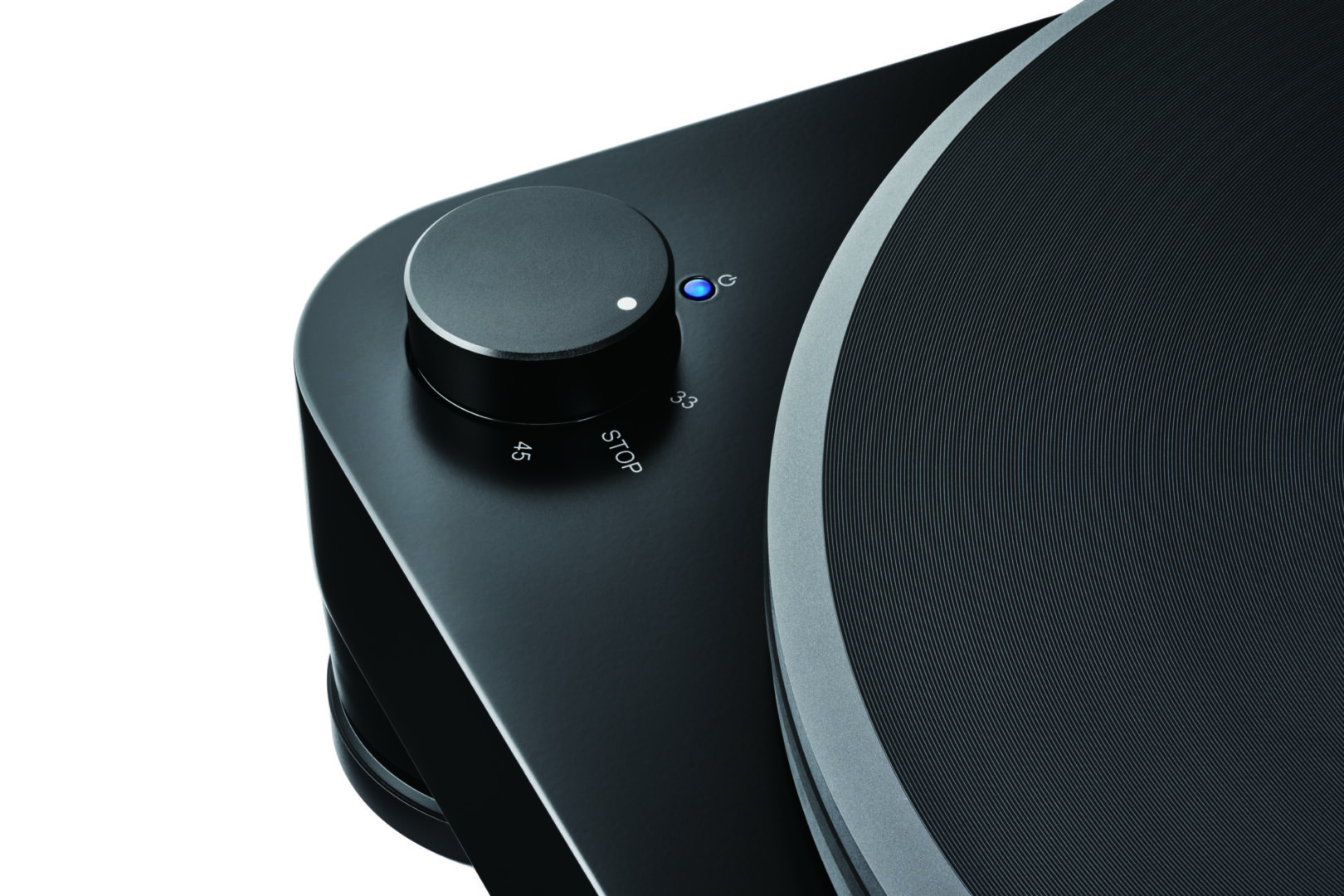

• Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
• Heavy 40 mm MDF (medium density fiberboard) cabinet construction reduces resonance and vibration for clearer sound
• Motor features a speed-sensor system to maintain accurate platter rotation speed
• 20 mm-thick, high-density acrylic platter offers high rotational inertia to spin records at a consistent speed (no platter mat required)

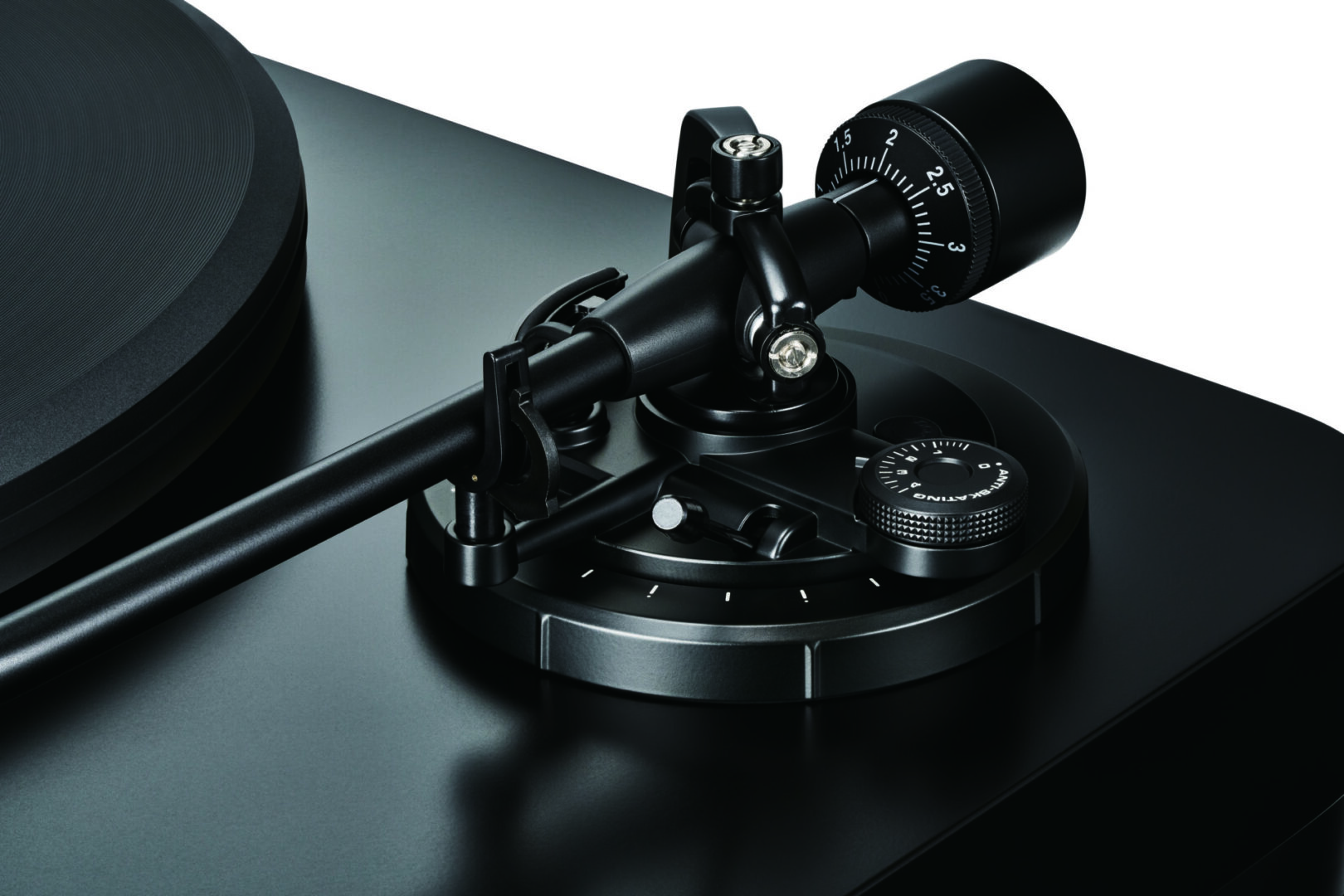

• J-shaped tonearm with adjustable VTA (vertical tracking angle)

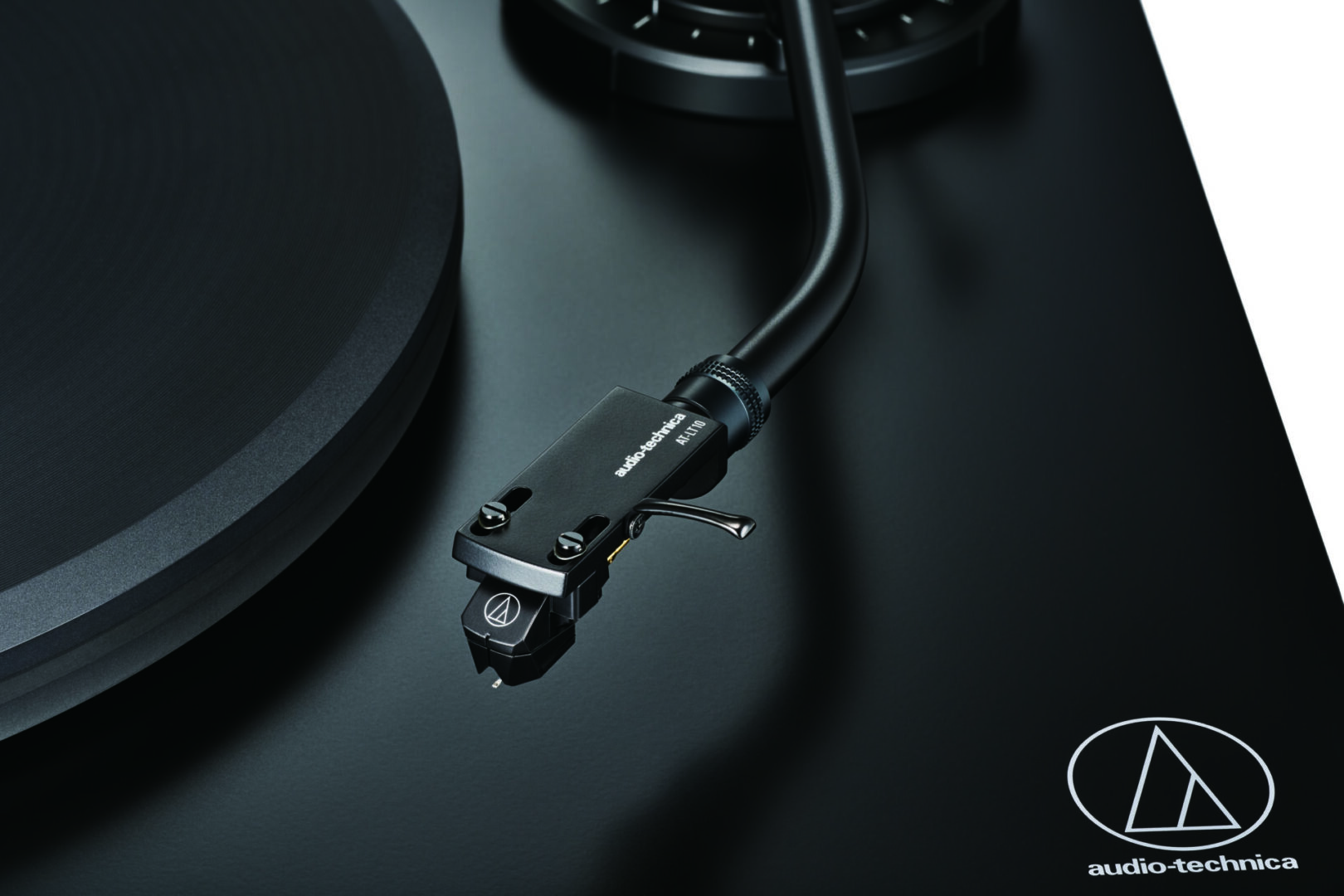

• AT-VM95E BK (black) cartridge (0.3 x 0.7 mil elliptical stylus) pre-mounted to lightweight AT-LT10 removable headshell
• AT-VM95 cartridge is compatible with most VM95 Series replacement styli, offering a wide choice of options for every budget and application
• Included 16 g subcounterweight provides an expanded cartridge/headshell weight range of 14.0 – 23.5 g
• A larger 32 g subcounterweight is available separately to enable the use of cartridge/headshell combinations up to 28.5 g
• Adjustable anti-skate control to counter the inward force the styli experiences during playback
• Built-in switchable phono pre-amplifier with selectable modes for MM (moving magnet) or MC (moving coil) cartridges
• Includes dual RCA (male) to dual RCA (male) stereo cable with ground, 45 RPM adapter, and dust cover

Motor DC servo motor

Drive method Belt drive

Speeds 33-1/3 RPM, 45 RPM

Turntable platter 20 mm (0.79″) thick acrylic platter

Wow and flutter < 0.1% (WTD) at 3 kHz (JIS)

Signal-to-noise ratio > 60 dB

Output levels PHONO: 4.0 mV nominal at 1 kHz, 5cm/sec

LINE: 252 mV nominal at 1 kHz, 5cm/sec

Phono Pre-amp gain MM: 36 dB nominal, RIAA equalized

MC: 56 dB nominal, RIAA equalized

Type Static balanced J-shaped tonearm

Effective length 247 mm (9.7”)

Overhang 15 mm (0.59”)

Maximum tracking error

angle

Less than 2.0°

Tracking force adjustment

range

0.0 to 4.0 g

Applicable cartridge weight

range (including headshell)

14.0 to 19.5 g (without subcounterweight)

17.5 to 23.5 g (with subcounterweight (light))

22.0 to 28.5 g (with subcounterweight (heavy)*1)

Tonearm height adjustment

range

−2 mm to +4 mm (when using included cartridge and headshell)

Specifications

AT-LP7X

Belt-Drive Turntable

Turntable specifications

Tonearm specifications

*1 The subcounterweight (heavy) is sold separately.

Cartridge and headshell specifications

Cartridge model AT-VM95E BK

Cartridge type VMRecommended load

impedance

47,000 ohms

Output voltage 4.0 mV (1 kHz, 5 cm/sec)

Stylus 0.3 × 0.7 mil bonded elliptical stylus

Cantilever Aluminum pipe

Tracking force range 1.8 to 2.2 g (standard 2.0 g)

Cartridge weight 6.1 g (0.22 oz)

Headshell model AT-LT10

Headshell weight Approx. 10.7 g (0.38 oz) (including lead wires)

Approx. 10.0 g (0.35 oz) (excluding lead wires)

Headshell overhang

adjustment

– 5.5 mm to + 2.5 mm (when using AT-VM95E)

Rated input voltage 100 to 240 V AC

Rated input current 0.6 A max.

Rated frequency 50 Hz / 60 Hz

Rated output voltage 12 V DC

Rated secondary current 0.5 A

Cable length Approx. 1.3 m (4.3’)

AC adapter

The included AC adapter may differ depending on the country of sale. Check the rating label on the AC

adapter. For details, contact your local Audio-Technica dealer.

General specifications

Dimensions 450 mm (18”) × 352 mm (14”) × 157 mm (6.2”) (W×D×H)

Weight Approx. 7.6 kg (17 lbs)

Power consumption 5.5 W

Operating temperature 5°C to 35°C (41°F to 95°F)

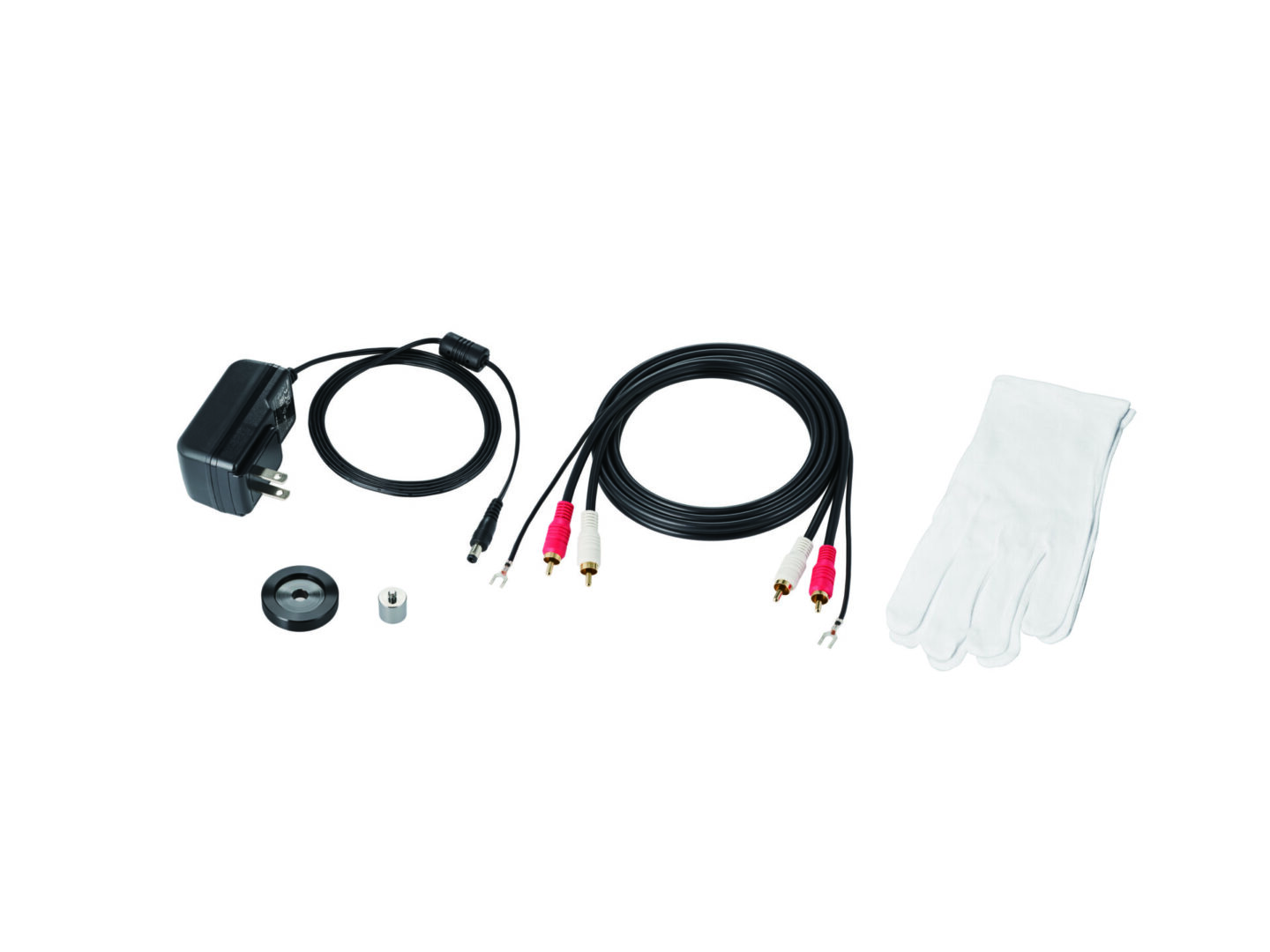

Accessories ・Dust cover

・Platter

・Drive belt

・Counterweight

・Subcounterweight (light)

・Headshell (AT-LT10) with VM stereo cartridge (AT-VM95E BK)

・45 RPM adapter・RCA audio cable (Approx. 1.4 m (4.6’))

・AC adapter (Approx. 1.3 m (4.3’))

・Gloves

Replacement stylus

(sold separately)

AT-VMN95E BK

Replacement headshell

(sold separately)

AT-LT10

Replacement belt (sold

separately)

AT-LP7X exclusive belt

Sold separately Subcounterweight (heavy)

For product improvement, the product is subject to modification without notice.
